low carbon steel Q235 Q275 EN 10025-2 S275JR C type channel U shape steel profile construction Mild steel C channels
Q235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialASTM A106 A36 Ss400 S235jr Hot Rolled C Z U Purlin Steel Structural Channel Customizable Galvanized Steel UPN metal mild steel Channels with SGS Certificate Q235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialQ235 Q345 Q275 ASTM A36 A106 12# Mild Steel U shape Hot Rolled U Channel for Building MaterialASTM A106 A36 Ss400 S235jr Hot Rolled C Z U Purlin Steel Structural Channel Customizable Galvanized Steel UPN metal mild steel Channels with SGS Certificate | Products | ASTM A106 A36 Ss400 S235jr Hot Rolled C Z U Purlin Steel Structural Channel Customizable Galvanized Steel UPN metal mild steel Channels with SGS Certificate |
| Grade | Q235B,Q345B |
| Type | GB standard(10#-40#,100*48mm--400*102mm) JIS standard(50*25mm--250*90mm) |
| Length | 6m, 12m, Large quantities can be customized |
| Technique | Hot rolled |
| Application | Mainly used for building structure, vehicle manufacturing, and other industrial structure, channel steel is often used with i beam. |
| Payment Terms | L/C or T/T |
Mild Steel 12 Meter U Shape MS Channel ASTM A36 MS C Shape channel for Construction
Product Description
Steel channel retaining wall uprites galvanized 150pfc , low carbon steel C type channel, U shape steel profile construction channels
Universal Beams, Universal Columns and Parallel Flange Channels
Steel Supplies carries the full range of lengths and foot weights for
Universal beams, Universal columns and Parallel flange channels.
All of our structural steel beams are procured from mills that have ACRS accreditation / certification.
UNIVERSAL BEAMS
Specification: AS/NZS 3679.1 : 2016 -Grade 300
Size Range: 150UB-610UB
Length Range: 900mm-18000mm
UNIVERSAL COLUMNS
Specification: AS/NZS 3679.1 : 2016-Grade 300
Size Range: 100UC-310UC
Length Range: 900mm-18000mm
PARALLEL FLANGE CHANNELS
Specification: AS/NZS 3679.1 : 2016-Grade 300
Size Range: 75PFC-380PFC
Length Range: 900mm-18000mm

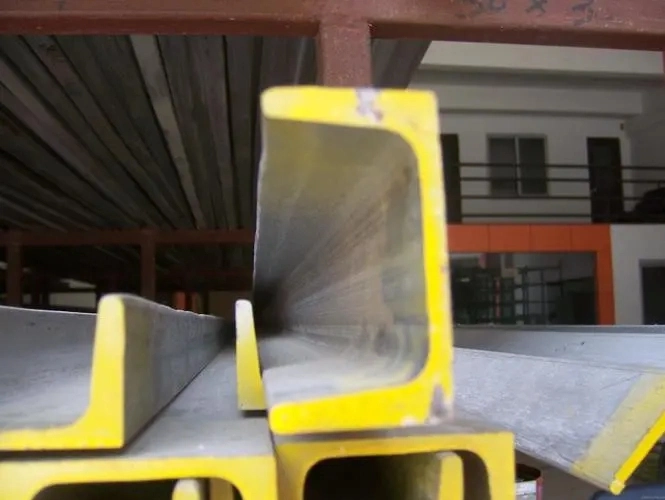

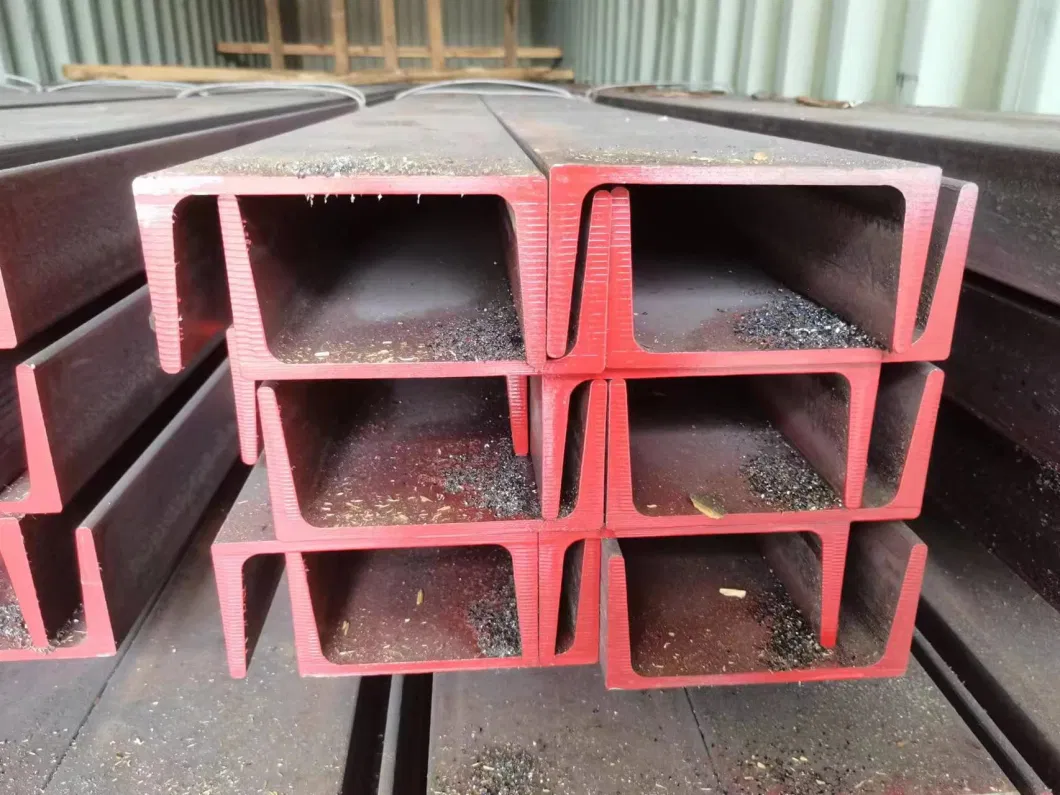

Mild steel channel, also commonly known as U channel or C channel is measured by width x depth x weight per meter.
These sections are manufactured from S275JR grade steel and have excellent machinability and weldability. Our stocks are available in mill finish, red oxide, or Zintec finishes to offer a range of corrosion resistance properties to suit your project. To increase corrosion resistance mild steel is normally painted or galvanized after fabrication.
Mild steel channel is widely used in civil engineering and construction to support floor joists and to weight bear above window and door gaps where the structural load does not require an I beam.
If you are uncertain whether your project requires mild steel C channels or an I beam, we recommend you consult a structural engineer or other qualified professional.
Mild steel channel is supplied in lengths up to 6 meters long and can be easily cut, drilled, and machined. It is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely used steel specifications for general construction.
| Nominal Size (mm) | Depth of Section (mm) | Flange Width (mm) | Flange Thickness (mm) | Web Depth (mm) | Web Thickness (mm) | Weight (kg/m) | Metres/ Tonne (m/t) | 9m | 10.5m | 12m | 13.5m | 15m | 16.5m | 18m |
| 100 x 50 | 100 | 50 | 6.70 | 87 | 4.20 | 8.33 | 120 | ✓ | | ✓ | | | | |
| 125 x 65 | 125 | 65 | 7.50 | 110 | 4.70 | 11.90 | 84 | ✓ | | ✓ | | | | |
| 150 x 75 | 150 | 75 | 9.50 | 131 | 6.00 | 17.70 | 57 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 180 x 75 | 180 | 75 | 11.00 | 158 | 6.00 | 20.90 | 48 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 200 x 75 | 200 | 75 | 12.00 | 176 | 6.00 | 22.90 | 44 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 230 x 75 | 230 | 75 | 12.00 | 206 | 6.50 | 25.10 | 40 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 250 x 90 | 250 | 90 | 15.00 | 220 | 8.00 | 35.50 | 28 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 300 x 90 | 300 | 90 | 16.00 | 268 | 8.00 | 40.10 | 25 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 380 x 100 | 380 | 100 | 17.50 | 345 | 10.00 | 55.20 | 18 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 50 x 25 | 50 | 25 | | | | 3.83 | 261 | ✓ | | ✓ | |
| Standard Equivalent |
China
GB/T, YB | America
ASTM | Japan
JIS | Germany
DIN EN | England
BS EN | France
NF EN | ISO | Korea
KS | India
IS |
| Q195 | Grade B | SS330
SPHC | S185(1.0035) | E185
Fe(310) | | D |
| Q215 | Grade C
CS Type B | | | SS330
(SS34) | Fe-330 |
| Q235-A | Grade D | SS400 | S235JR (1.0038) | E235 A
E235 B
E235 C
E235 D | SS400
(SS41) | |
| Q235-B | S235J0(1.0114) | Fe-410 |
| Q235-C | S235J2(1.0117) |
| Q235-D | | S235JR(1.0038) |
| Q275 | SS Grade
40 (275 ) | SS490 | S275JR(1.0044)
S275J0(1.0143)
S275J2(1.0145) | E275
(Fe430) | SS490 | Fe-490 |
| Q345-A | Grade
50 (345) | SPFC590 | E355(1.0060) | E355 | | |
| Q345-B | S355JR(1.0045) | | |
| Q345-C | S355J0(1.0553) | | |
| Q345-D | S355J2(1.0577) | | |
| Q345-E | S355NL(1.0546) | | |
C-Channels are standardized channel sections. The hot rolled execution has conical flanges, while the laser fused has parallel ones. Both their tolerances are defined by ASTM A 484, the laser fused execution has additionally the product standard defined by ASTM A1069.
C-Channels in stainless steel are used in commerce and industry but also in machinery and equipment building. The use of stainless steel profiles is characterized by a high flexibility of composition and a fast and cost-reduced construction (through the possibility of prefabrication in the steel production). Stainless steel profiles are produced mainly from scrap and can be recycled again after utilization so new resources can be conserved.
What is mild steel channel and what is it used for?
Mild steel channel, also commonly known as U channel or C channel is measured by width x depth x weight per metre.
These sections are manufactured from S275JR grade steel and have excellent machinability and weldability. Our stocks are available in mill finish, red oxide, or Zintec finish to offer a range of corrosion resistance properties to suit your project. To increase corrosion resistance mild steel is normally painted or galvanised after fabrication.
Mild steel channel is widely used in civil engineering and construction to support floor joists and to weight bear above window and door gaps where the structural load does not require a I beam.
If you are uncertain whether your project requires mild steel C channel or an I beam, we recommend you consult a structural engineer or other qualified professional.
Mild steel channel is supplied in lengths up to 6 metres long and can be easily cut, drilled, and machined. It is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely use steel specifications for general construction.
large-scale iron and steel enterprise integrating iron and steel production, processing, distribution and trade. The comprehensive strength has jumped to the forefront of the domestic steel industry.
Steel is committed to the research and development, production and processing of carbon steel and profiles and pipes, with strong research and development strength and reliable quality assurance capabilities. Products are suitable for nuclear power, aviation, marine engineering, oil exploration, construction and other fields. The comprehensive annual production capacity is 500,000 tons, and the products are exported to more than 100 countries and regions.
Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q: What product information do I need to provide?
A: Quality grade, width, thickness, coating, and the number of tons you need to purchase.
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, and Qingdao ports, you can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 7-15 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q: Does the product have a quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

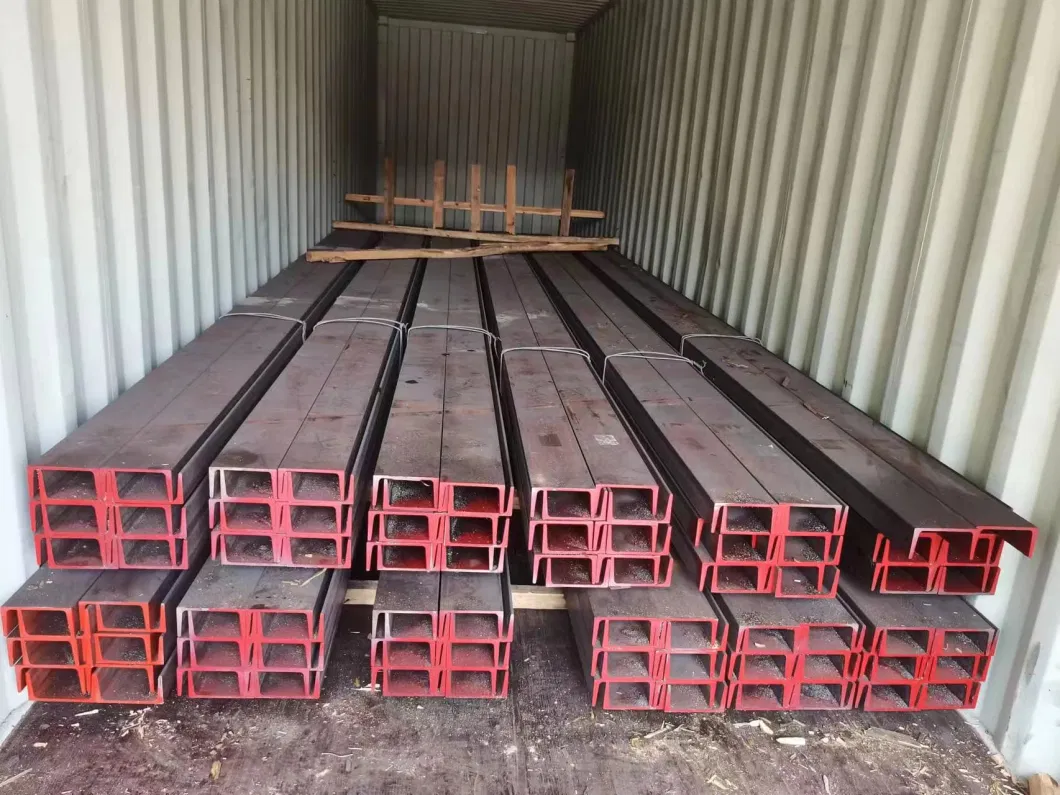

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
